FLEX 3X6H

Flex 3x6H

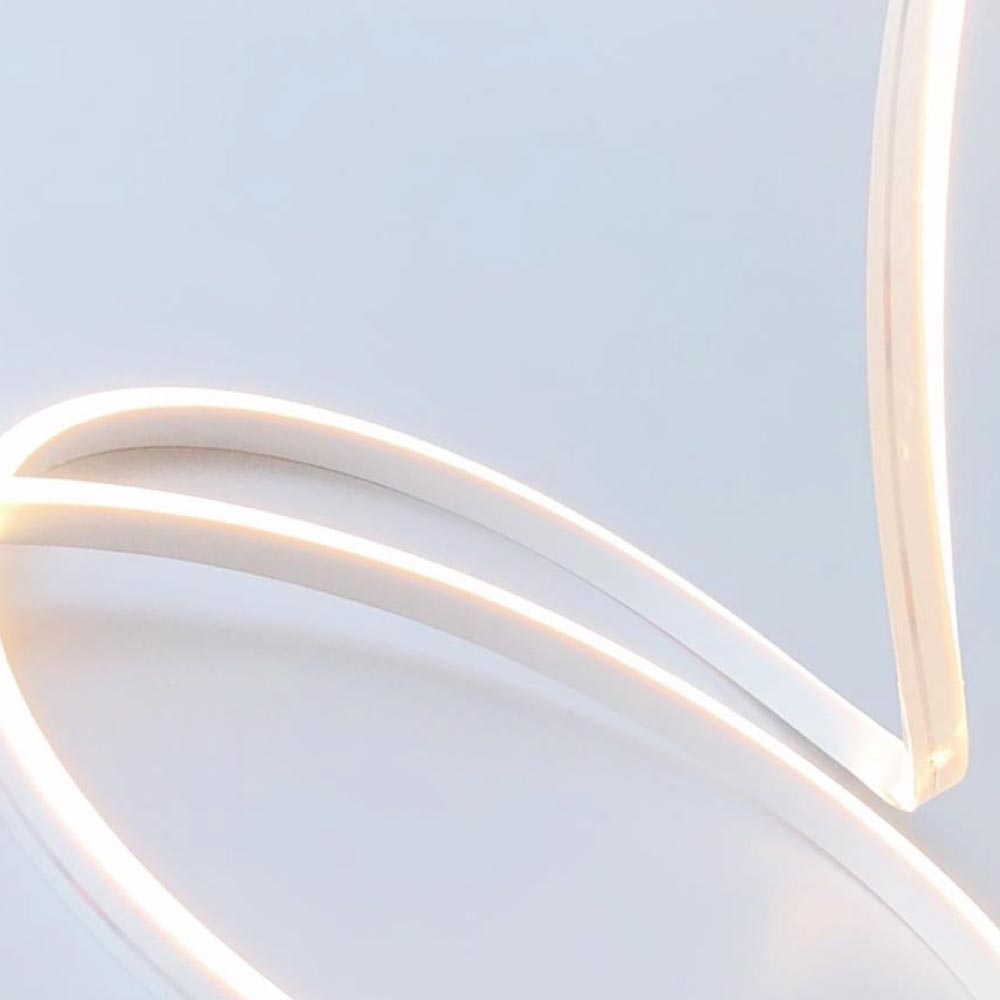

Flexible and versatile LED ribbon. UV, salt and flame resistant. Wide range of colour temperature ranges from 1800k - 6000k.

This flex is designed to be installed in a recess (push fit). It does not come with adhsive backing or have any optional accessories.

OPTIONS

Model Horizontal

Jacket Colour White

LED CRI/CCT

LED Type

Cable Entry

IP Rating IP65

Cable Length

Length - Click here to filter to your desired length

Configured Power / Delivered Lumen Output

SPECIFICATIONS

Driver 24VDC - To be ordered separately

Driver Requirement PWM Dimming

Material Silicone

CRI >90Ra

LED Binning 3 Step MacAdam ellipse

Protection UV, flame, salt and chlorine resistant

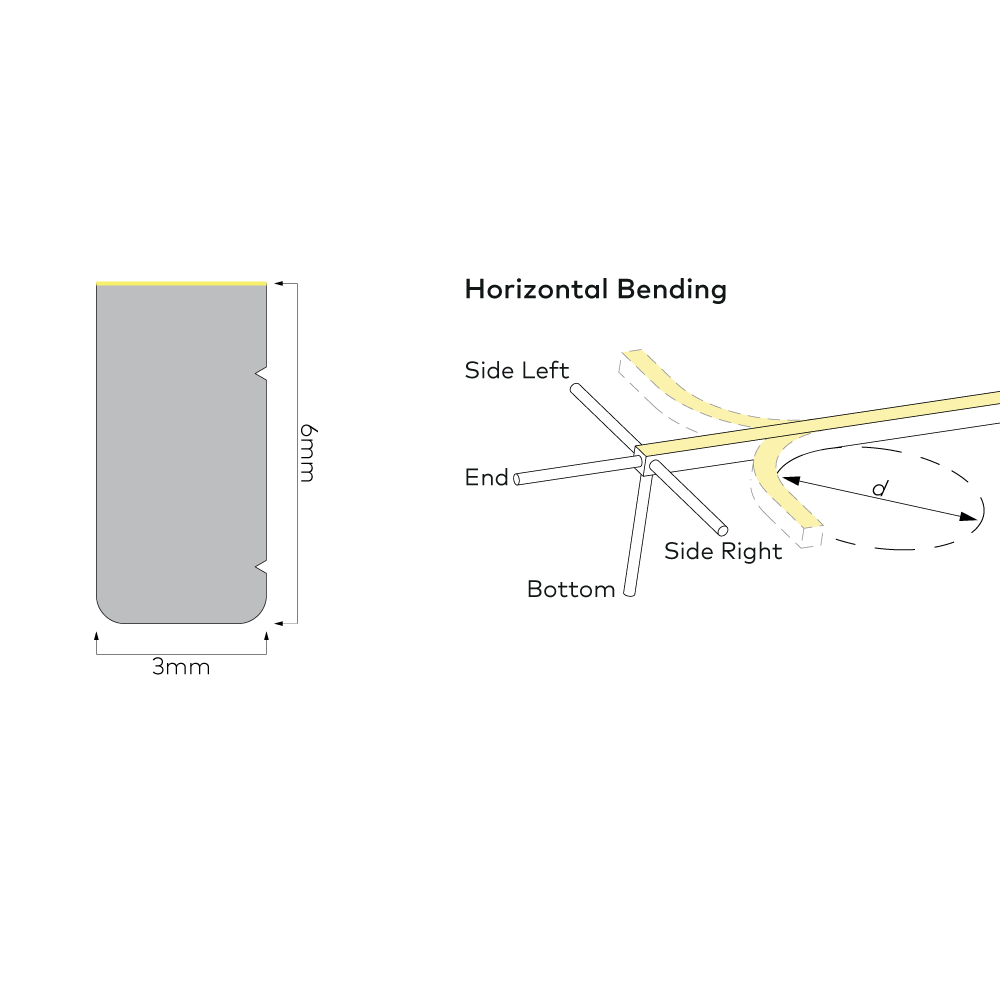

Minimum Bend Diameter Ø30mm

LED Cut Point

PHOTOMETRIC SPECIFICATIONS

Source Lumens 0

Delivered Lumens 0

Max. Candela 0

Polar Curve Click To View

Cone Diagram Click To View

Downloads

Download

Family Datasheet

Photometry
